UWA India Campus

Cloudflare WAN Architecture

A Phased Approach to Secure Connectivity

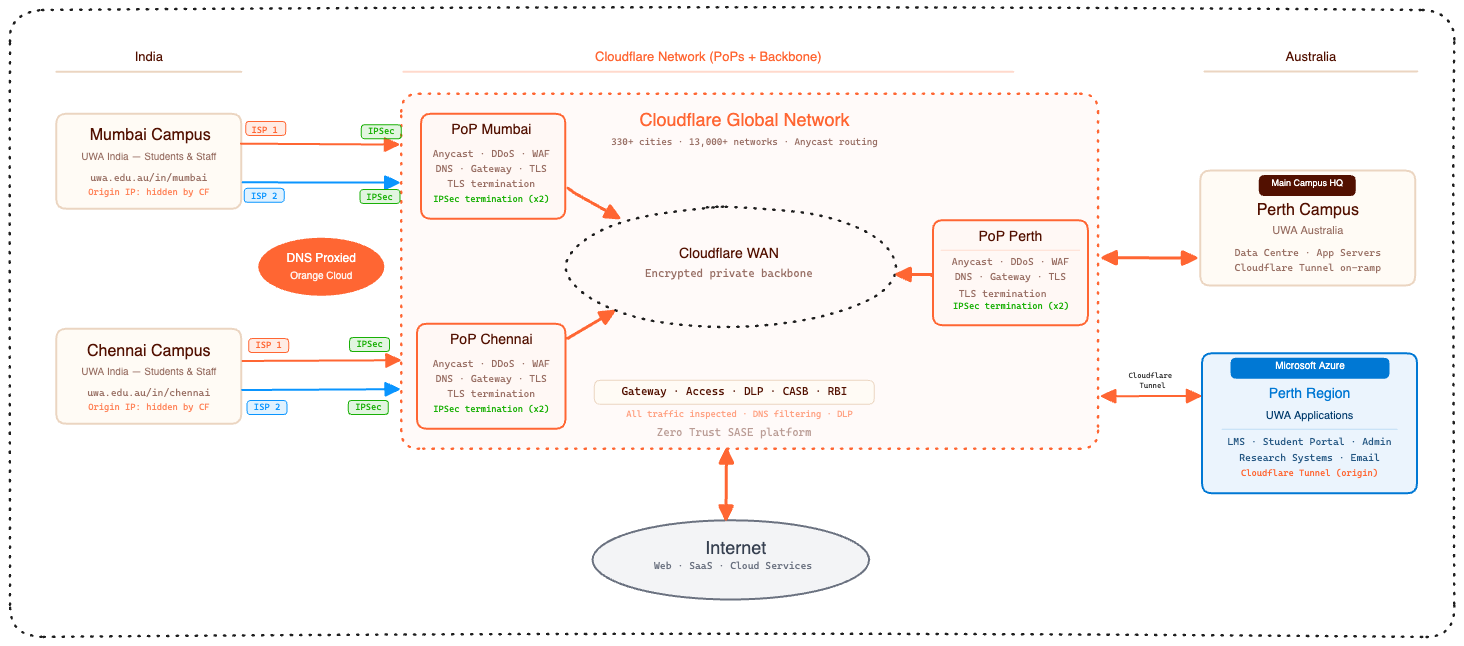

Complete Architecture Overview

Complete Architecture

Technical Implementation

Phase 1: DNS Protection

Orange-cloud DNS proxy with DDoS mitigation, WAF rules, and bot management. Traffic inspected at Cloudflare's edge before reaching origin.

Phase 2: Cloudflare WAN

Encrypted IPSec tunnels from India campus to Cloudflare's global backbone. Secure, private connectivity to Perth and beyond.

Phase 3: Full SASE

Cloudflare Access for identity, Gateway for SWG, DLP for data protection. Complete Zero Trust architecture.

Global Integration

Unified policy across 330+ cities. Anycast routing ensures optimal performance from Mumbai to Perth and beyond.

Business Outcomes

Security First

Protection against DDoS, bots, and web attacks from day one

Global Reach

Low-latency connectivity to Perth and worldwide campuses

Zero Trust

Identity-based access and comprehensive data protection

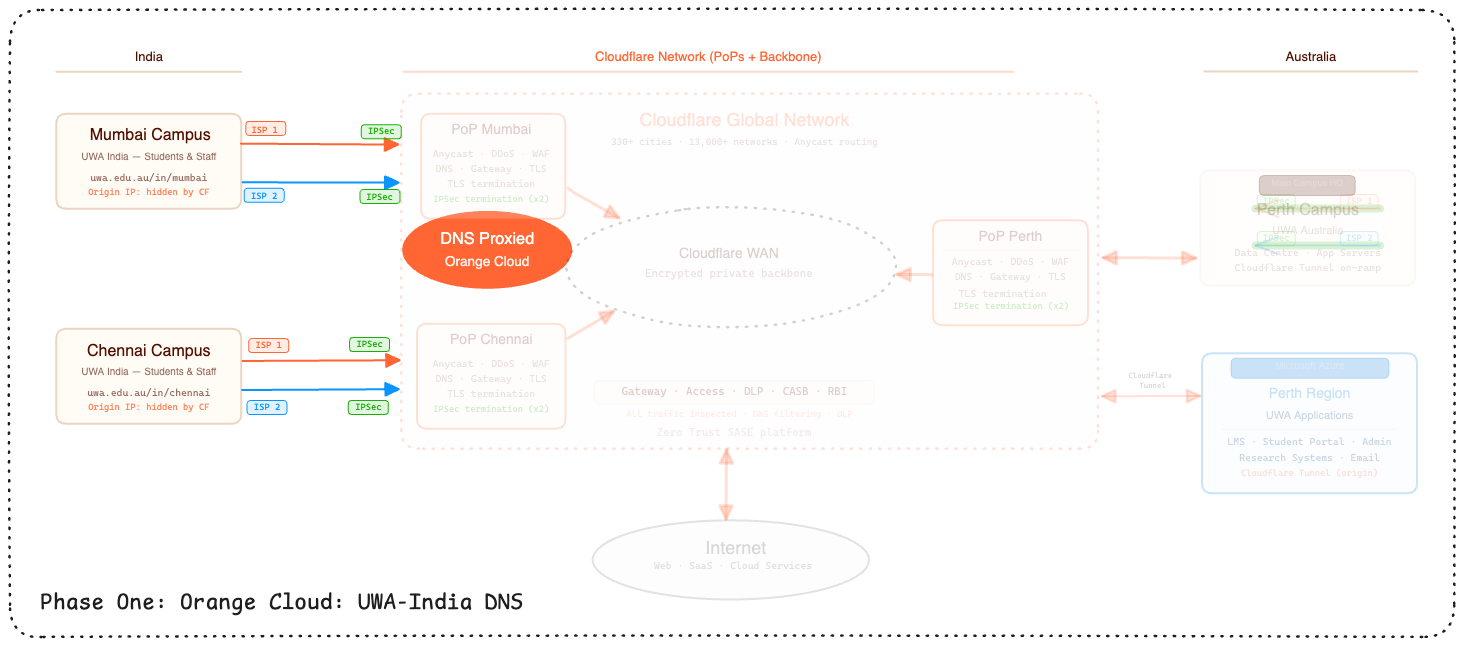

Phase 1: Orange Cloud DNS

Phase 1: Orange Cloud DNS

Phase 1 Technical Details

Objective: Protect UWA-India public-facing applications and websites

DNS Proxy

  • Orange-cloud all DNS records
  • Traffic routed through Cloudflare's edge
  • Global Anycast network (330+ cities)

DDoS Protection

  • Unmetered L3/L4/L7 mitigation
  • Automatic attack detection
  • Always-on protection

WAF & Bot Management

  • OWASP Core Rule Set
  • Managed rule sets
  • Bot detection and mitigation

SSL/TLS

  • Universal SSL certificates
  • Automatic HTTPS rewrites
  • TLS 1.3 support

Phase 1 Business Value

"Protect student portals and academic systems from day one. No hardware, no latency penalty."

Immediate Benefits

  • Sub-50ms latency globally
  • 99.9% uptime SLA
  • Zero CAPEX deployment

Timeline

Week 1-2 DNS cutover

Week 3-4 WAF tuning

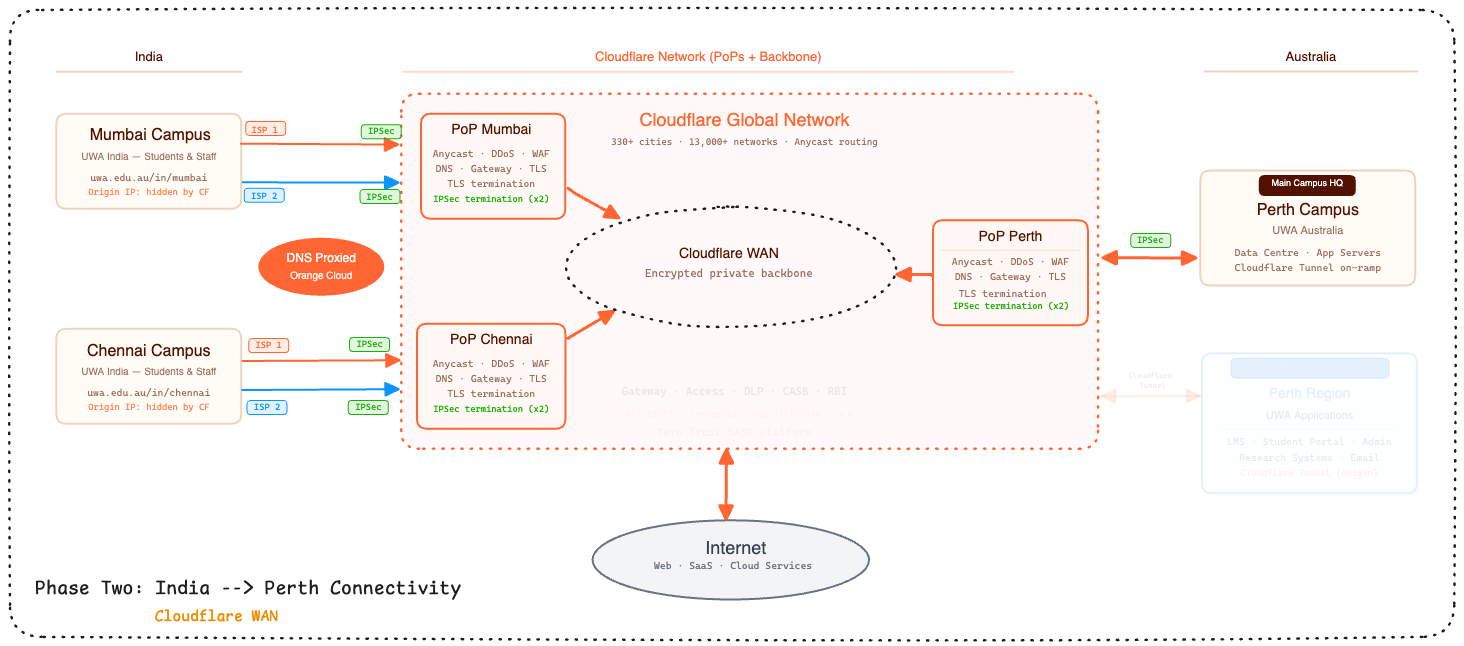

Phase 2: India → Perth Connectivity

Phase 2: India to Perth Connectivity

Phase 2 Technical Details

Objective: Establish secure, private connectivity between Mumbai campus and Perth HQ

IPSec Tunnels

  • Site-to-site IPSec from India firewall
  • Cloudflare Tunnel endpoints
  • AES-256 encryption in transit

Cloudflare WAN

  • Cloudflare's private global backbone
  • Anycast routing for optimal paths
  • Automatic failover and load balancing

BGP Peering

  • Dynamic route advertisement
  • Automatic path selection
  • Sub-50ms convergence

Traffic Inspection

  • All inter-site traffic scanned
  • Magic Firewall rules
  • DLP for sensitive data

Phase 2 Business Value

"Mumbai to Perth in under 100ms with encryption that doesn't slow you down."

Performance Gains

  • ~40% latency reduction vs public internet
  • Jitter-free video conferencing
  • Consistent file transfer speeds

Deployment

Week 1 Tunnel configuration

Week 2 BGP peering

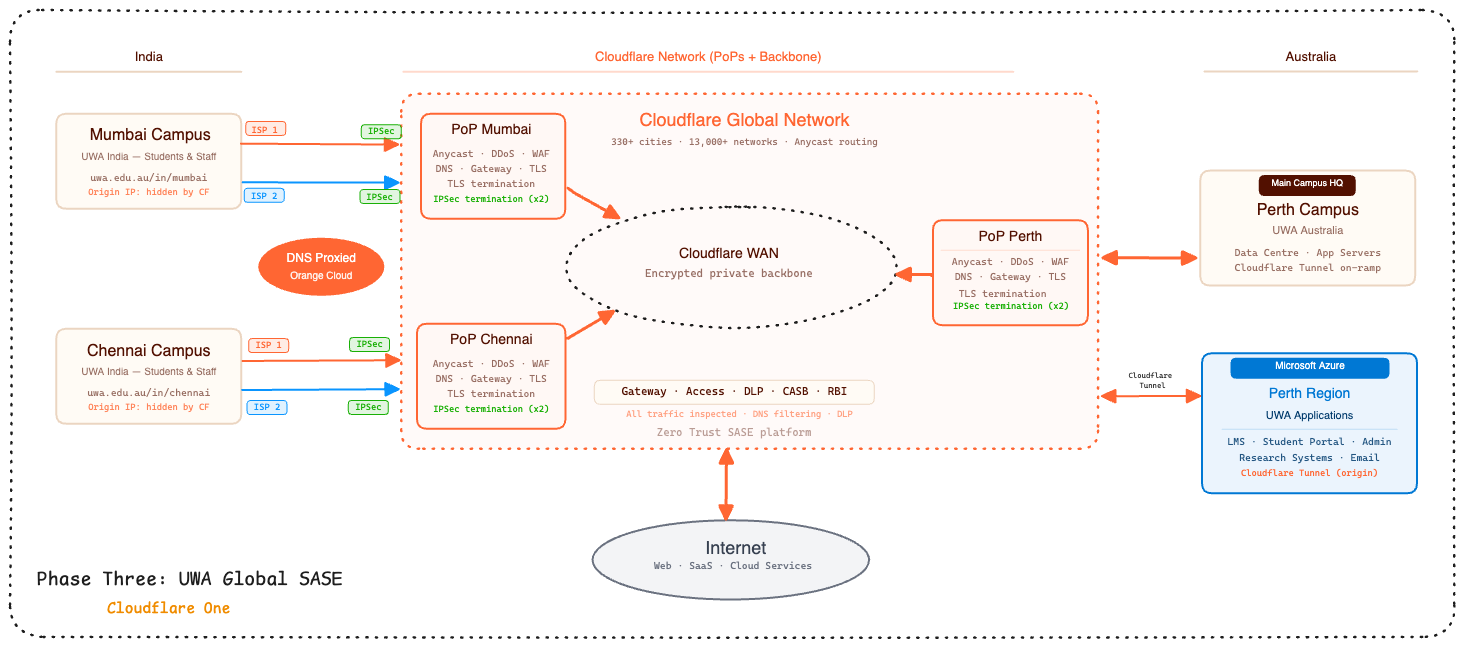

Phase 3: UWA Global SASE

Phase 3: UWA Global SASE

Phase 3 Technical Details

Objective: Complete Zero Trust SASE architecture for all users and devices

Cloudflare Access

  • Identity-aware proxy for all apps
  • SSO integration (SAML/OIDC)
  • Device posture checks

Secure Web Gateway

  • DNS, HTTP, and TLS filtering
  • URL categorization
  • Anti-phishing protection

DLP & CASB

  • Data loss prevention policies
  • Cloud app visibility
  • Shadow IT detection

Browser Isolation

  • Zero-day threat protection
  • Clientless isolation
  • Granular policy control

Phase 3 Business Value

"One platform for identity, security, and connectivity. Simplify while strengthening."

Transformation Outcomes

  • Single vendor, single pane of glass
  • Consistent policy everywhere
  • Reduced security complexity

Rollout Phases

Month 1 WARP deployment

Month 2 Access policies

Month 3 Gateway & DLP

Implementation Roadmap

Phase 1

Orange Cloud DNS

Immediate protection
Weeks 1-4

Phase 2

Cloudflare WAN

Private connectivity
Weeks 5-8

Phase 3

Full SASE

Zero Trust complete
Months 3-6

One platform. Global reach. Zero Trust security.
